Gewa G9 Module Worktation

You have before you a project developed for years of testing and that has not gone to the market until Gewa engineers have not been sure to be able to offer you a module of very high performances and with some exclusive technical additions. We invite you to enjoy as we are doing this authentic wonder.

Drum Workstation G9 Module. A new way to interact with your drum

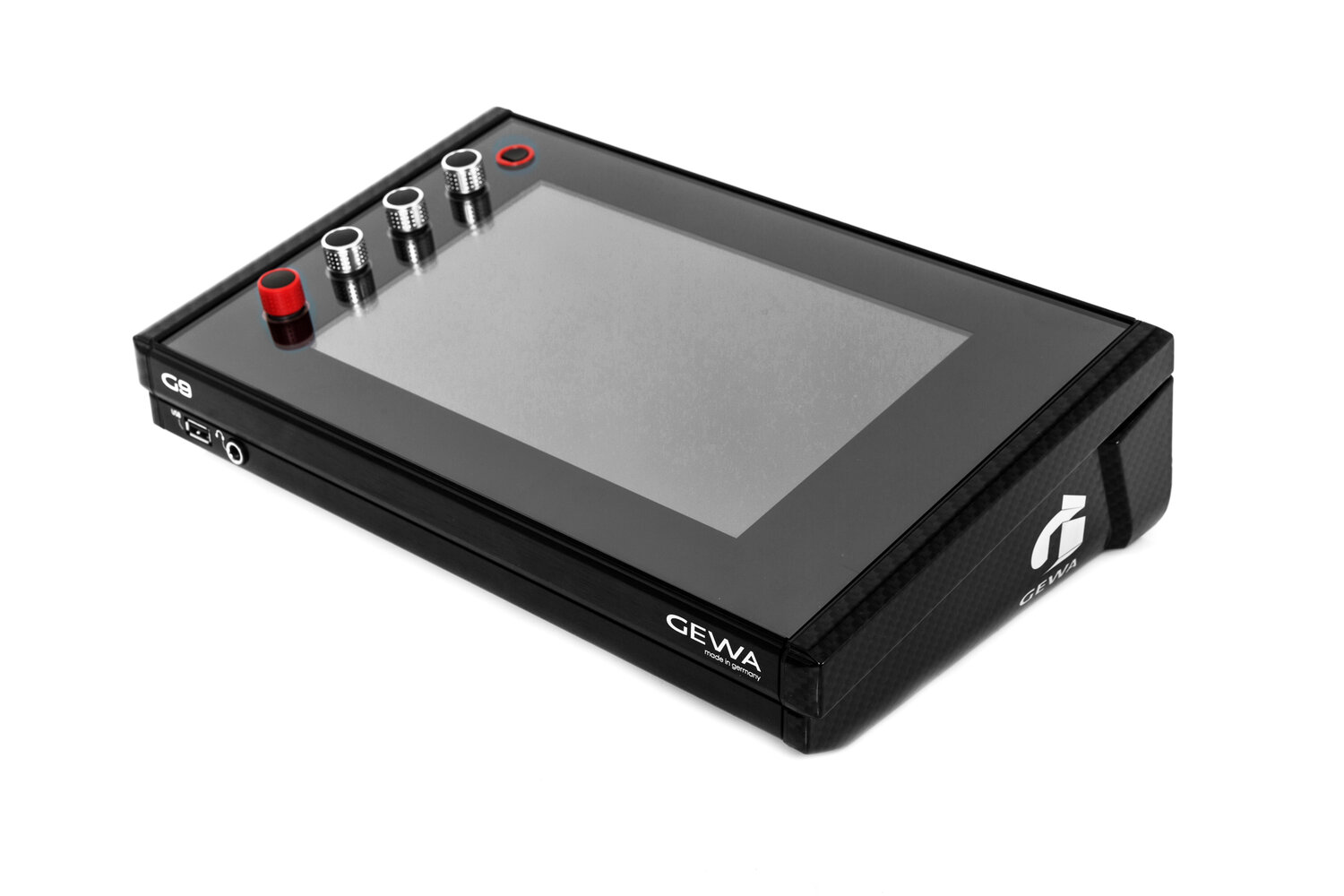

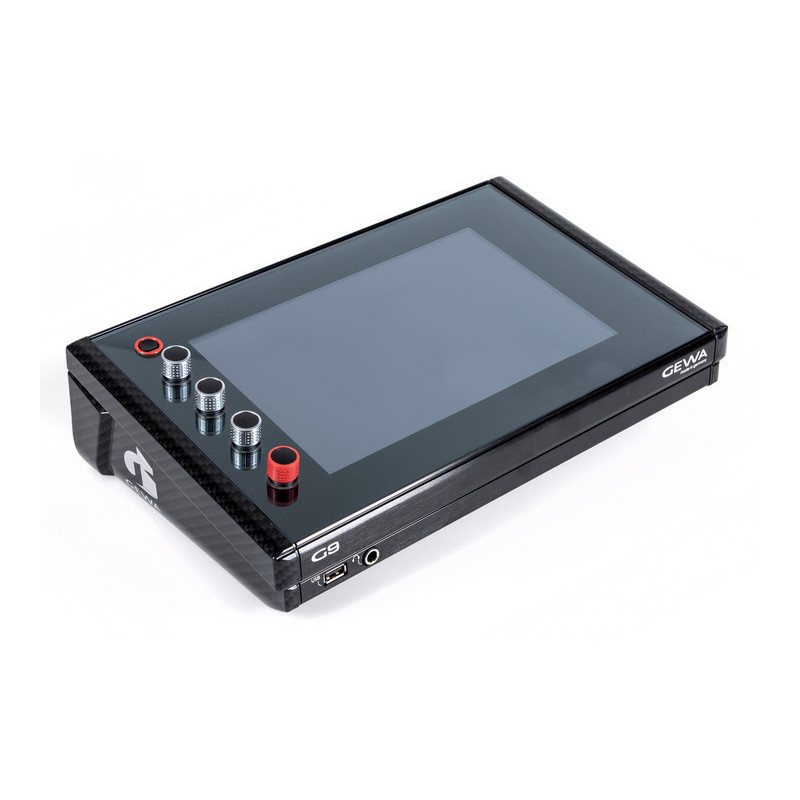

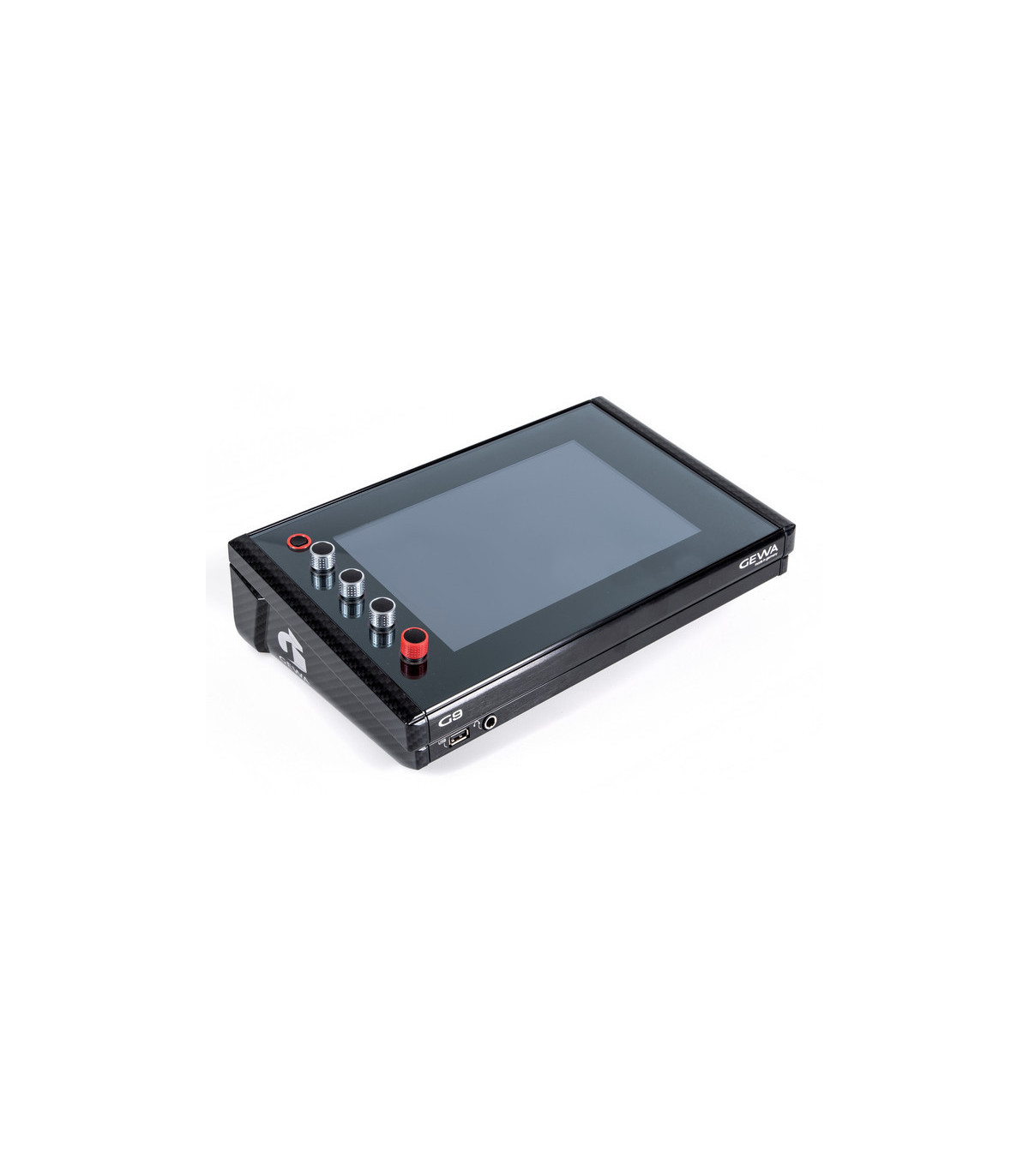

The direct Touch 10 ” interface makes using the G9 module really fun and easy. Never before had it been so easy to create your own settings, adjust the sensitivity or  direct the drum to different channels.

Multichips architecture
To be able to maintain the extensive touch interface, the detection of triggers and the high resolution samples and that their speed is maximum, a special architecture of several chips has been developed. The advantage of this system is that each chip has its own role and is specialized in doing so of the best possible and of course at a speed of vertigo.

Record my G9? Of course.
There are almost infinite possibilities of recording your drum with Drum Workstation G9. This is one of those the main reasons the which is called  Workstation (working station).
You can use the two L/R outputs, eight direct output channels or connect the module via USB directly to your PC or Mac. You can easily use it as a plug`n play sound interface with 8 channels plus MIDI functionality.
Thanks to the touch user interface, each function is within reach of your hand and you can configure your own settings in seconds.

Do you need more effects? No problem, wish granted
Are you tired of the low quality effects of your drum electronics? You just want to have the same environmental sound in your e-kit as in your acoustic kit? All that without going through the dials to find the perfect sound?
Well, that's exactly what the G9 does for you  For this module, not only did the sounds of the drum in the famous Funkhaus studios in Berlin, the environmental sounds generated by the drum!
This functionality will allow you to easily add an incredible and natural ambient sound to your set.

Online downloads
One the main concerns of users drums high-end electronics is that they are not obsolete in a short time. Gewa G9 puts at your disposal a download page so that your module is always updated with the improvements that will continue to experience your module. From now on you will have a set to the last.
Here is this page where you can download them:
https://www.gewaelectronics.com/eu/downloads

I want more sounds
For more than a decade, we have become accustomed to living in a wireless environment in which we can get in our daily lives the latest applications and music online and from there to our smartphones in seconds.
The G9 introduces this technology into the world of the drum digital. Due to its remarkable connectivity, you have direct access to the cloud GEWA Electronics where you can download sounds to increase your G9 Sound library.

Compatibility with other brands
The module GEWA G9 is compatible with the most of the pads drum electronics of the brand market such as Roland, Yamaha or Alesis. You can easily choose between existing presets or create them yourself We advise you to visit this link where you can see the updated list of pads with presets already made.
https://www.gewaelectronics.com/eu/workstation

Some features

• Kits drumThe following: 40 presets + unlimited user presets
• Instruments: Over 400 instruments
• Effects
  • Pad compressor
  • full parametric equalizer of 3 bands for each
    pad output compressor
  • full parametric equalizer of 4 bands for each
    exit room
  • 12 types / multiple: 9 algorithms
• Import of user samples
   00 Wave or 100 full multilayer instruments (Head / Rim / X-Stick - Bell / Bow / Edge)
  Length: 320 Monkey, 160 Stereo
  File format: WAV (44.1 kHz, 16/24 bit)
  USB / Internal memory
• Memory external
• Display TFT 1280 x 800px integrated the touchscreen 4 hardware dials, based on software
• File format the real-time recorder (wav) : WAV (44.1 kHz, 16 bits)
• Wireless connections Bluetooth, Wi-Fi Sampling Frequency
• Recording
  • (original): 48 kHz
  • Sample frequency: (with converter): 96 kHz, 44.1 kHz
  • Recording: 8 channels
  • Reproduction: 2 channels

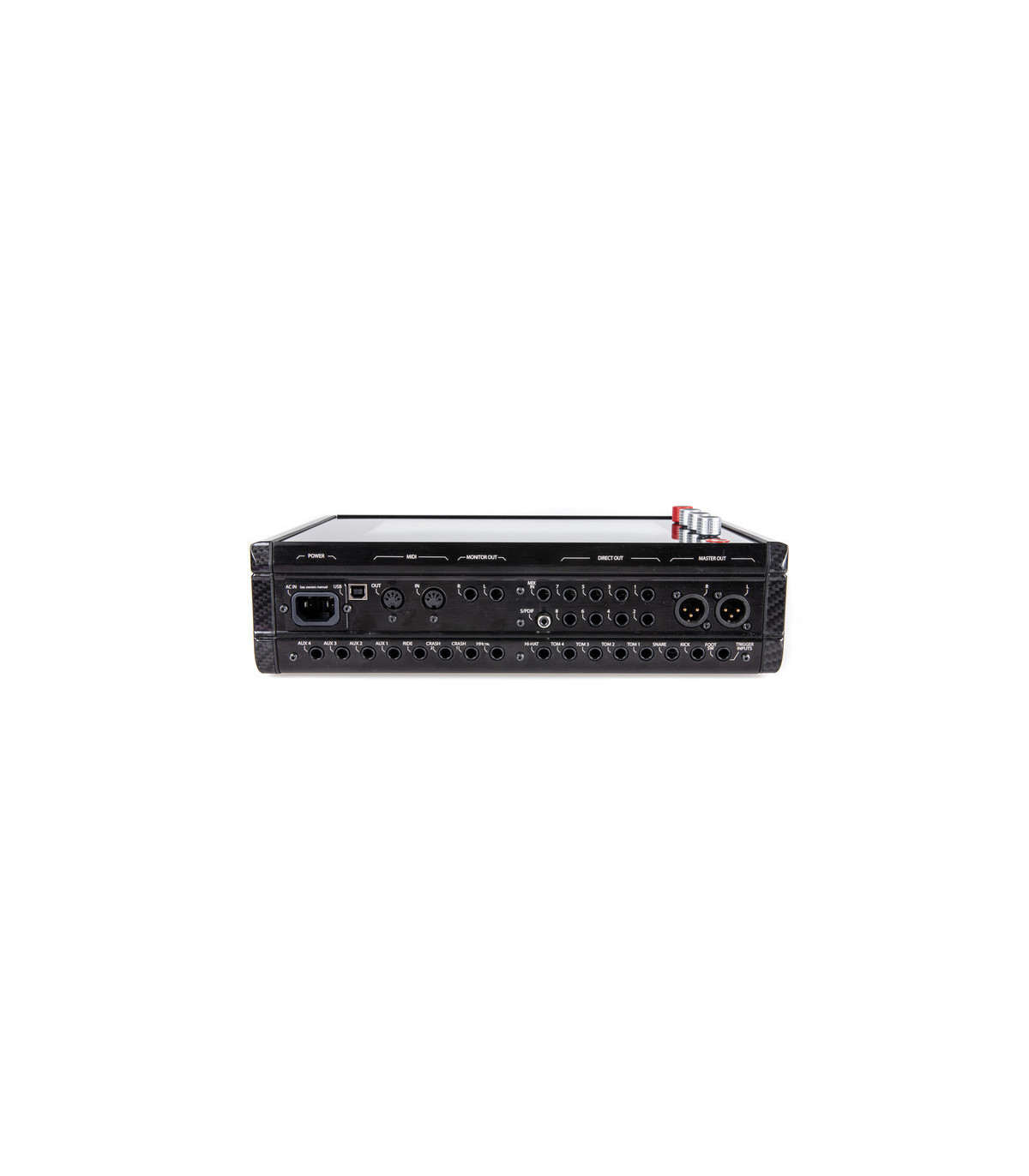

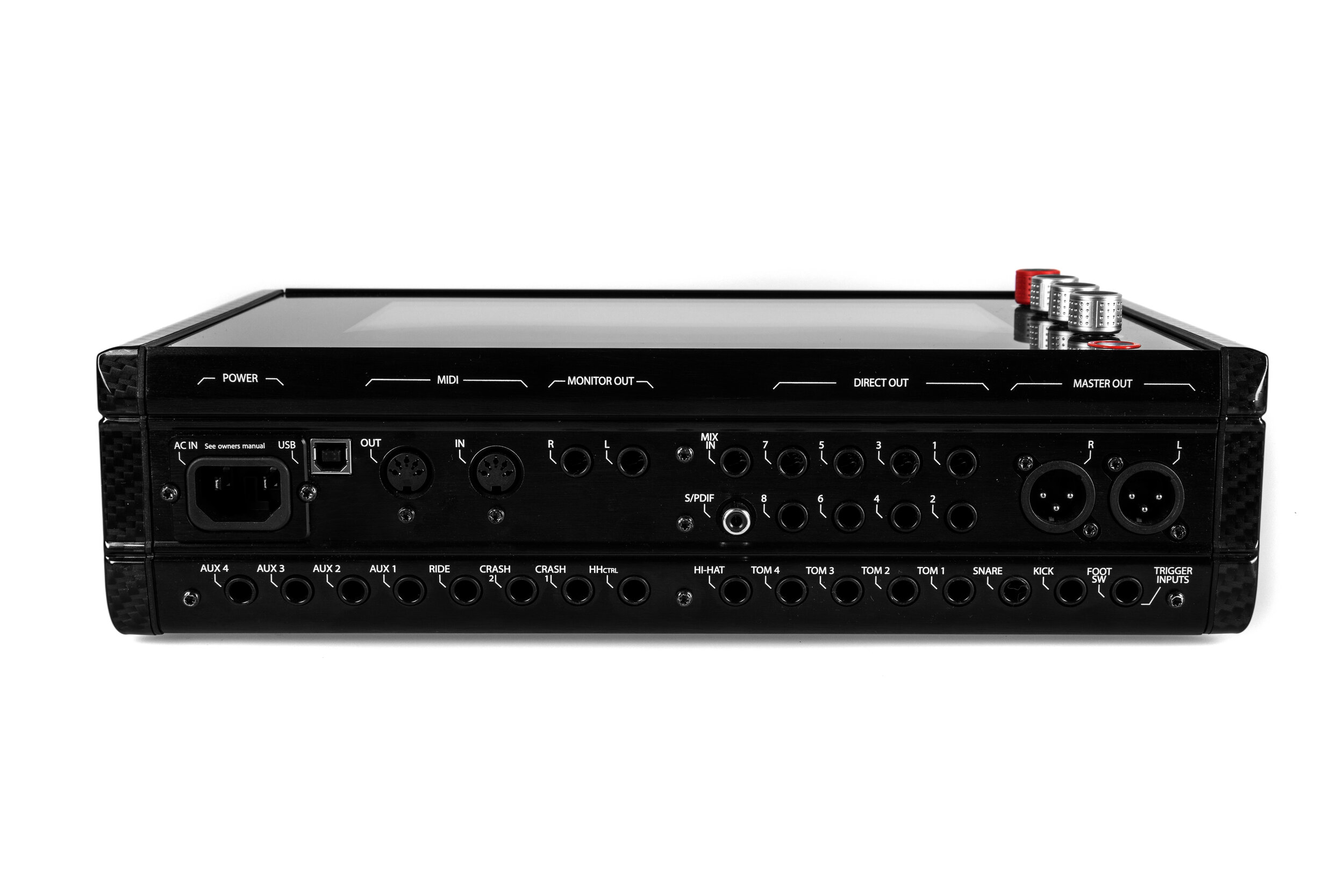

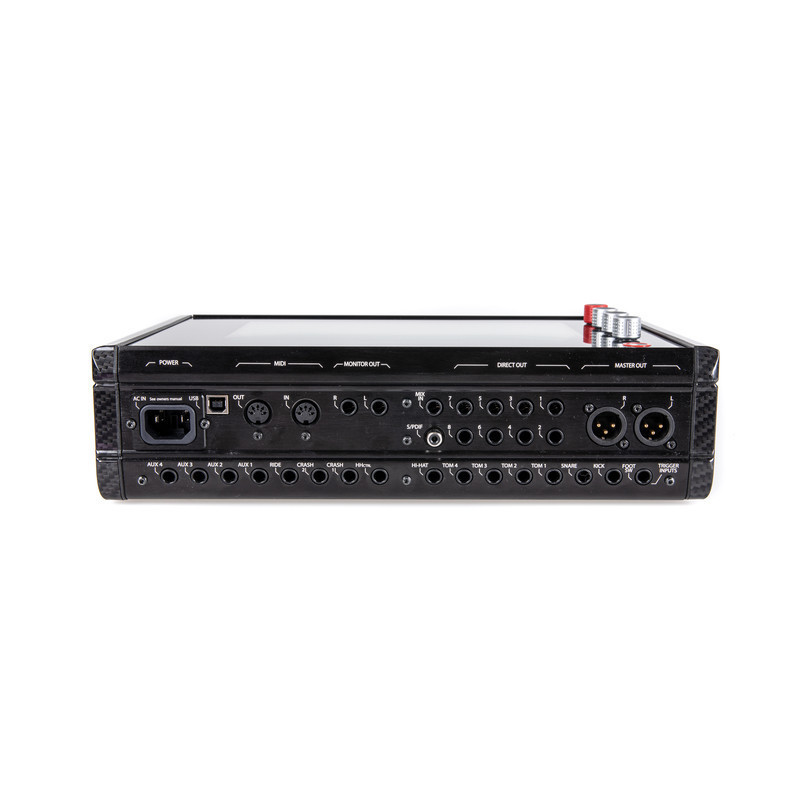

• Connections
  • • Shooter inputs: 14 x 1/4 "TRS Socket
    • Monitor output: 2 x 1/TRS Socket
    • Master Out: XLR Balanced
    • SPDIF (Stéreo) 48 kHz Direct Out: 8 x 1/4 "TRS Socket
    • Telephones: 1/4 "TRS Socket
    • MIX IN: 1/4" TRS Socket (Stereo)
    • MIDI (IN, OUT / THRU)
    • Computer Connection: USB Type B (High Speed Audio UBS / MIDI)
    • Pedal switch: 1 x TRRS (2 Channel)
    • AC IN (EUR 8)

Tutorials
Gewa G9 has arranged a series practical tutorials so you can always have interesting information about the countless things he does the G9 and remember that you will always have us at your disposal the technical doubts.
Here you have the link to access these tutorials (English)
List of Gewa G9 Tutorials
